Feuling Race Series Oil Pump & Campplate Kit – Oil Cooled

Feuling Race Series Oil Pump & Campplate Kit – Oil Cooled

FEULING Race Series oil pump and camplate kits for oil-cooled Milwaukee-Eight engines provide significantly improved oil pressure, volume, flow and return/scavenge function. The result is smoother, more reliable engine operation and lower operating temperatures.

Increases oil pressure, oil volume and flow

27% greater pressure and scavenge volume than original

42% more scavenge volume via optimized channels and port adaptation

46% more oil for crankshaft and connecting rod bearings

15–25 °C lower engine temperature

15–30 °C lower oil temperature

10–30 PSI higher oil pressure

Reduces wet sumping, blow-by and oil in the air filter

Documented +2 HP and +2 ft/lbs of torque on the rear wheel (M8)

Up to 50% lower sump oil level according to Feuling test results

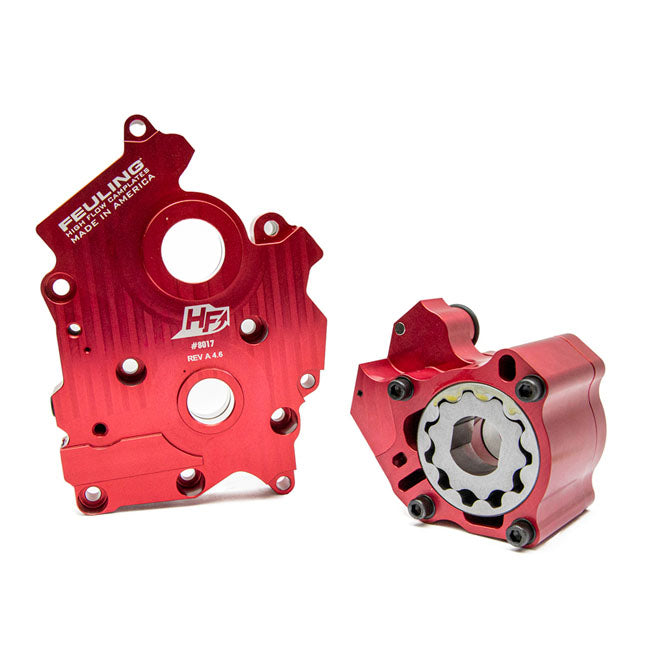

Race Series kit includes:

High Flow billet camplate in 7075 aluminum (50% stronger than OEM)

Enlarged oil passages and matching port holes for increased flow to lifters, cooling jets, crankshaft and bearings

Bench-tested oil pump in hard-anodized 7075 billet, with improved scavenge channels and precise pressure relief valve (30 PSI seal, 55–60 PSI pop-off)

Deeper scavenge chambers than the HP+ series for additional volume

Oil level note: Do not overfill the oil tank. Feuling recommends a warm oil level of 90–99%. Do not allow the engine to warm up on the side stand as this may give a false reading. Follow Feuling's instructions for proper checking:

1. Check cold oil.

2. Run the motorcycle up to operating temperature.

3. Turn off the engine while holding the bike upright.

4. Put on the side supports and check the level.

5. Adjust oil as needed.

Suitable for:

Softail 2018–2025 (oil cooled)

Touring/FLT 2017–2025 (oil cooled)
