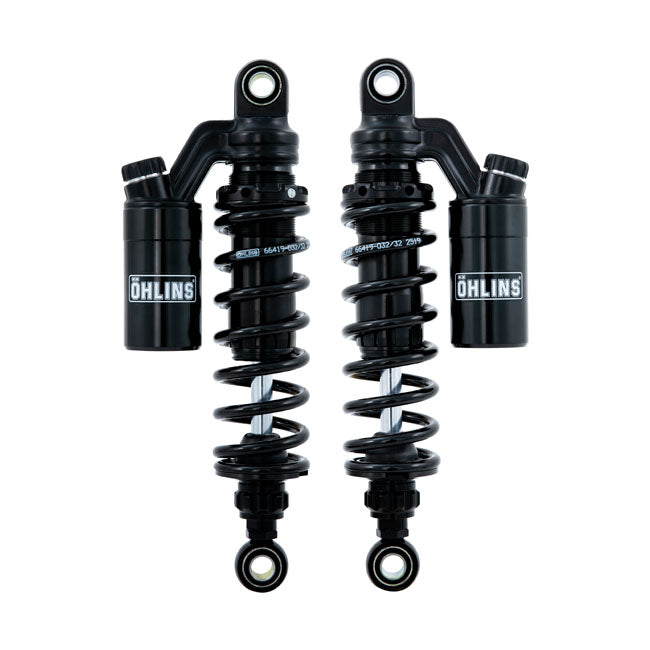

Öhlins, STX36 Blackline rear shock kit. 305 mm

Öhlins STX36 Blackline rear shock set (305mm)

Black springs

Black damper body

S: Single tube

Piston diameter: 36 mm

P: Monotube high-pressure gas damper with external “piggy back” reservoir

R1: Adjustable rebound damping. Adjustment wheel above the eye

C1: Adjustable compression damping. Adjustment wheel or slot on the reservoir

L: Adjustable length

Length: 305 +10/-0 mm

Stroke length: 68 mm

Spring tension: 33 N/mm

Position: rear

Installed spring: 00281-66

Packaging: pair

ABE approved

The STX36 is a high-performance shock absorber that combines durability and adjustability. It is suitable for cruisers where suspension characteristics and comfort are important.

Suitable for:

07–17 Dyna Fat Bob FXDF (FD2)

93–99 Dyna Glide Conv. FXDS-CON (FXD)

16–17 Dyna Low Rider 103 FXDL (FD2)

99–03 Dyna Low Rider FXDL (FD1)

06–10 Dyna Low Rider FXDL (FD2)

15–16 Dyna Low Rider FXDL (FD2)

No APE:

93–99 Dyna Low Rider FXDL (FXD), short version

03–04 Dyna Low Rider FXDLI (FD1)

05–07 Dyna Low Rider FXDLI (FD2)

16–17 Dyna Low Rider S FXDLS (FD2)

2017 Dyna Street Bob 103 FXDB (FD2)

06–16 Dyna Street Bob FXDB (FD2)

07–15 Dyna Super Glide Custom FXDC (FD2)

05–06 Dyna Super Glide Custom FXDCI (FD2)

00–05 Dyna Super Glide FXD (FD1), short version

91–94 Dyna Super Glide FXD (FXD)

95–99 Dyna Super Glide FXD (FXD), short version

12–16 Dyna Switchback FLD

09–17 Dyna Wide Glide FXDWG (FD2)
